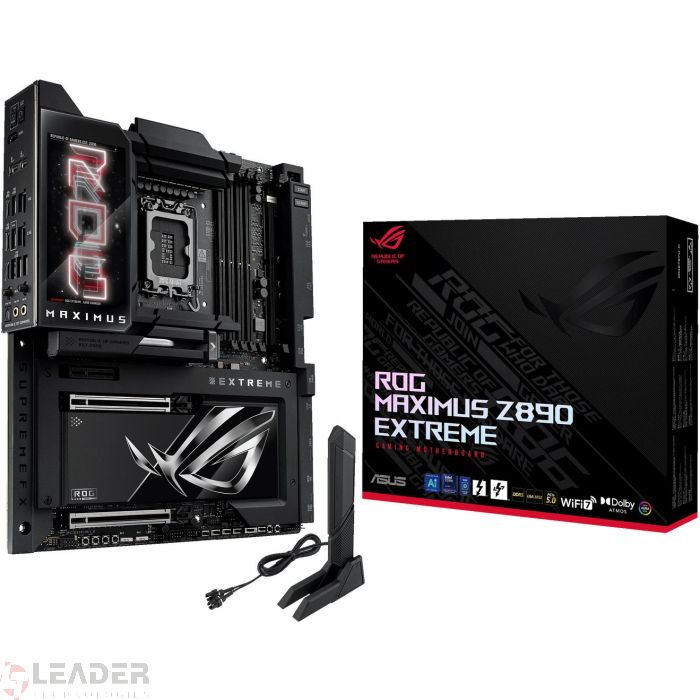

Дънна платка ASUS ROG MAXIMUS Z890 EXTREME LGA1851 DDR5 ATX MB 90MB1IA0-M0EAY0
КРАТКО ОПИСАНИЕ
ASUS Z890 4xDDR5 4xSATA3 RAID HDMI 6xM2 2xGLAN 2xPCIEx16 WiFi
1337,90 €
| Description 90MB1IA0-M0EAY0 | |
|---|---|
| Vendor_url | https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-extreme/ |
| Manufacturer | ASUS |
| Graphics | 1 x HDMITM port;2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs |
| Cpu's supported | Support Intel® Core™ Ultra Processors (Series 2) , LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® Z890 Chipset |
| Expansion slots | Intel® Core™ Ultra Processors(Series 2);2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes);Intel® Z890 Chipset;1 x PCIe 4.0x4 slot |
| Storage | Total supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports;Support Intel® Core™ Ultra Processors(Series 2);M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes);M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes);Intel® Z890 Chipset;DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports |
| Memory type | 4 x DIMM slots, max. 256GB, DDR5;Support up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III (AEMP III);Supports DIMM Flex;DIMM Fit;NitroPath DRAM Technology |
| Rear panel i/o | 2 x Thunderbolt™ 5 USB Type-C® ports;1 x USB 20Gbps port (1 x USB Type-C®);7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®);1 x HDMITM port;1 x Wi-Fi Module;1 x Intel® 2.5Gb Ethernet port;1 x Marvell® AQtion 10Gb Ethernet port2 x LED-illuminated audio jacks;1 x Optical S/PDIF out port;1 x BIOS FlashBack™ button ;1 x Clear CMOS button |
| Usb | Rear USB (Total 10 ports);2 x Thunderbolt™ 5 ports (2 x USB Type-C®);1 x USB 20Gbps port (1 x USB Type-C®);7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®);Front USB (Total 10 ports);1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*;1 x USB 10Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;USB Type-C® power delivery output: max. 5V/3A;*USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A |
| Connectors | Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;2 x 4-pin Chassis Fan headers;2 x 4-pin Radiator Fan headers;2 x W_PUMP+ headers;1 x WB_SENSOR header;Power related ;1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connector;1 x 8-pin PCIe Power connector;Storage related;4 x M.2 slots (Key M) ;1 x DIMM.2 slot supports 2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 20Gbps connector (supports USB Type-C®);1 x USB 10Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers;2 x Addressable Gen 2 header;1 x Alteration PCIe mode switch;4 x BCLK button;1 x BIOS Switch button;1 x FlexKey button;1 x Front Panel Audio header (F_AUDIO);1 x LN2 Mode jumper ;18 x ProbeIt Measurement Points;1 x ReTry button;2 x RSVD switchs;1 x RSVD header;1 x Safe Boot button1 x Slow Mode switch ;1 x Start button;1 x 10-1 pin S |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback on front panel;Audio Features ;- SupremeFX Shielding Technology;- ESS® ES9219 QUAD DAC;- LED-illuminated audio jacks;- Rear optical S/PDIF out port;- Premium audio capacitors;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| Lan | 1 x Intel® 2.5Gb Ethernet;1 x Marvell® AQtion 10Gb Ethernet;ASUS LANGuard u2003 |
| Wireless | Intel® Wi-Fi 7;2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate;Bluetooth® v5.4 |
| Bluetooth | 5.4 |
| Bios | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | E-ATX Form Factor;30.5 cm x 27.7 cm |
| Os | Windows 11 (22H2 & later) |
| Warranty | 36 Months |
| Наличност | Налични за поръчка |
|---|---|
| Гаранционен срок | 36 |
| Производител | ASUS |
| Вид | Дънна платка |
