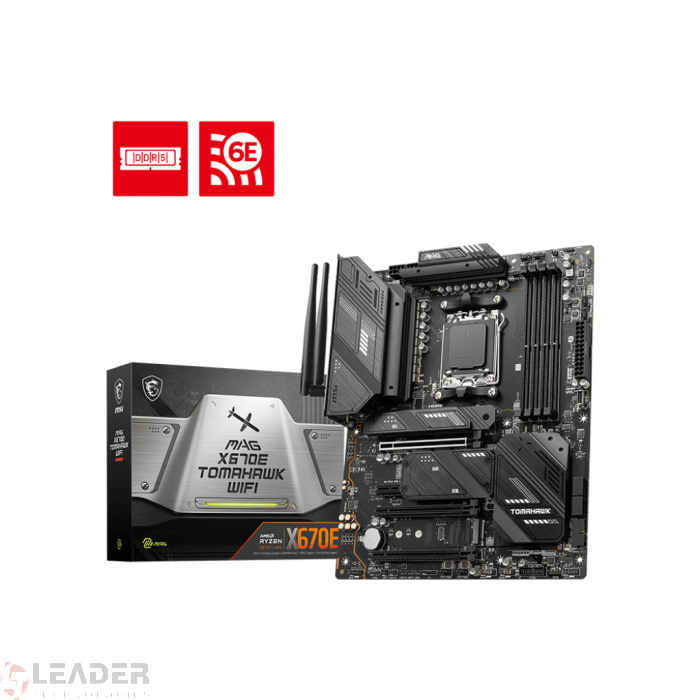

Дънна платка MSI MAG X670E TOMAHAWK WIFI
Изчерпано количество
SKU
911-7E12-007
КРАТКО ОПИСАНИЕ
MSI X670 4xDDR5 4xSATA3 RAID HDMI DP 4xM2 GLAN 3xPCIEx16 1xPCIEx1 WiFI
625,90 €
| Description 911-7E12-007 | |
|---|---|
| Cpu's supported | Supports AMD Ryzen™ 7000 Series Desktop Processors; Socket AM5 |
| Graphics | 1x HDMI™; Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*; 1x Type-C DisplayPort; Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz |
| Expansion slots | 3x PCI-E x16 slot; Supports x16/x4/x2; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU); PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset) |
| Storage | 4x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G |
| I/o | DisplayPort; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 2 5Gbps (Type-A); 2.5G LAN; Wi-Fi / Bluetooth; Audio Connectors; Flash BIOS Button; HDMI™; USB 3.2 Gen 2 10Gbps (Type-C Display port); USB 3.2 Gen 2x2 20Gbps (Type-C); S/PDIF-Out |
| Connectors | 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports |
| Audio | Realtek® ALC1200 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output |
| Lan | Realtek® RTL8125BG 2.5Gbps LAN |
| Form factor | ATX,243.84mmx304.8mm |
| Os | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Other | AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3** |
| Warranty | 36 Months |
| Наличност | Налични за поръчка |
|---|---|
| Гаранционен срок | 36 |
| Производител | MSI |
| Вид | Дънна платка |
| Чипсет на видео карта | 1x HDMI™; Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*; 1x Type-C DisplayPort; Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz |
