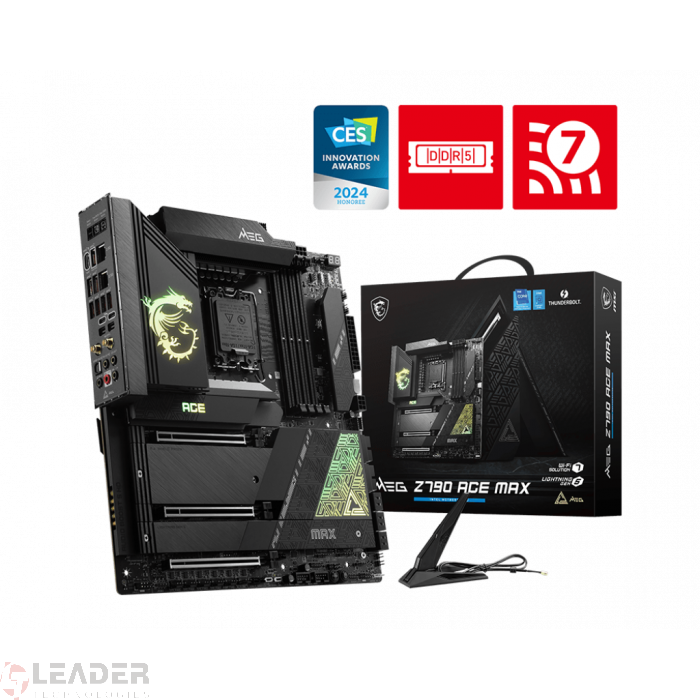

Дънна платка MSI MEG Z790 ACE MAX
| Description 911-7d86-006 | |
|---|---|
| Cpu's supported | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 192GB; Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6800+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 6000+ MHz; Supports Intel® XMP3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory |
| Graphics | 1x Type-C DisplayPort; Supports a maximum resolution of 4K 60Hz |
| Expansion slots | 3x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Storage | 5x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices; M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices; M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices; 6x SATA 6G |
| I/o | Clear CMOS Button; Flash BIOS Button; 2.5G LAN; 2.5G LAN; Thunderbolt 4 40Gbps (Type-C); Wi-Fi / Bluetooth; Audio Connectors; Smart Button; USB 3.2 Gen 2 10Gbps (Type-C Display port); USB 3.2 Gen 2 10Gbps (Type-A); Mini DisplayPort Input (for Thunderbolt passthrough); Optical S/PDIF-Out |
| Connectors | 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Front Type-C Quick Charge Connector(PD_PWR1); 1x CPU Fan; 2x Pump Fan; 5x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Water Flow connector; 1x Slow Mode Booting Jumper(JSLOW); 1x Front Audio (JAUD); 2x Thermal Sensor connectors(T_SEN); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports; 2x USB 3.2 Gen 2x2 Type C ports; V-check point; 1x ARGB+FAN Header (JAF_1) |
| Audio | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA; 7.1-Channel USB High Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel |
| Lan | 2x Intel® 2.5Gbps LAN;Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Form factor | E-ATX,277mmx304.8mm |
| Os | Support for Windows® 11 64-bit |
| Other | ONBOARD THUNDERBOLT:Thunderbolt chip JHL8540; 2x Thunderbolt4 (USB-C) ports Q’ty; Supports up to 40Gbps transfer rate with Thunderbolt devices; Supports up to 20Gbps transfer rate with USB4 devices; Supports up to 10Gbps transfer rate with USB 3.2 devices; Supports up to 5V/3A,15W power charging; Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices; Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) |
| Warranty | 36 Months |
| Наличност | Налични за поръчка |
|---|---|
| Гаранционен срок | 36 |
| Производител | MSI |
| Вид | Дънна платка |
| Чипсет на видео карта | 1x Type-C DisplayPort; Supports a maximum resolution of 4K 60Hz |
