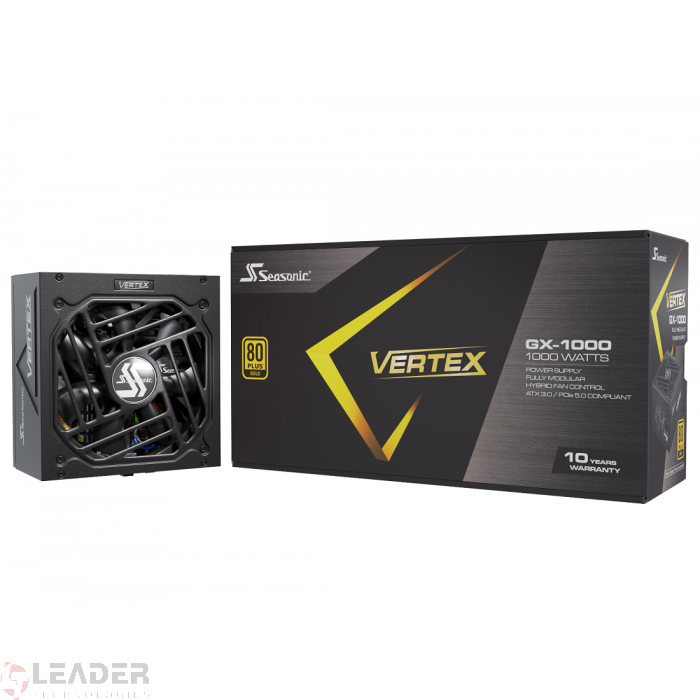

Захранване PSU SEASONIC VERTEX GX-1000
| Description 1VT10GFRT3A12X | |
|---|---|
| Form factor | Intel ATX 12 V |
| Ac input | Voltage: 100 V - 240 V; Current: 13 - 6.5 A; Frequency: 50 Hz - 60 Hz |
| Dc output | Rail:+3.3 V/+5 V/+12 V/-12 V /+5 VSB; Maximum Power:25 A/25 A/ 83 A/0.3 A/3 A; 125 W/996 W/3.6 W/15 W; Total continuous power:1000 W |
| Connectors | MB (24/20 pins):1-610-1 CPU (8/4 pins):1-700-2; PCIe (8/6 pins):2-750-0; PCIe (8/6 pins):1-750-3; SATA:4-950-0; SATA:4-950-4; SATA:4-760 -0; SATA 3.3:2-550-1; SATA:2-570-0; SATA:2-470-0; SATA 3.3:2-550-0; Molex:3-690-1; Molex:2-470-0; Molex to SATA 3.3 Adapter:2-300-0; Molex to FDD Adapter:1-101-0; 12VHPWR:1 (16 Pins to 16 Pins)-750-1 |
| Fan information | Fan Size:135 mm; Fan Control:Digital Fan Control; Fan Bearing:Fluid Dynamic Bearing; Life Expectancy:50,000 hours at 40 °C, 15 % - 65 % RH |
| Cable information | Modularity:Fully Modular; Cable type:Flat black cables |
| Features | Operating Temperature:0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C); MTBF @ 25 °C, excl. fan:150,000 hours; AC Input:Full Range; Protection:OPP, OVP, UVP, OCP, OTP, SCP |
| Safety and environmental | Safety and EMC:cTUVus, TUV, CB, CCC, BSMI, EAC, CE; Environmental Compliance:Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Dimensions | 160 mm (L) x 150 mm (W) x 86 mm (H) |
| Warranty | 99 Months |
| Гаранционен срок | 99 |
|---|---|
| Наличност | Налични за поръчка |
| Производител | SEASONIC |
| Вид | Захранване |
