Аксесоар за сървър LENOVO ThinkSystem 1Gb 2-port RJ45 LOM

На склад

SKU

7ZT7A00544

Добави за сравнение

Бъдете първият оценил този продукт

КРАТКО ОПИСАНИЕ

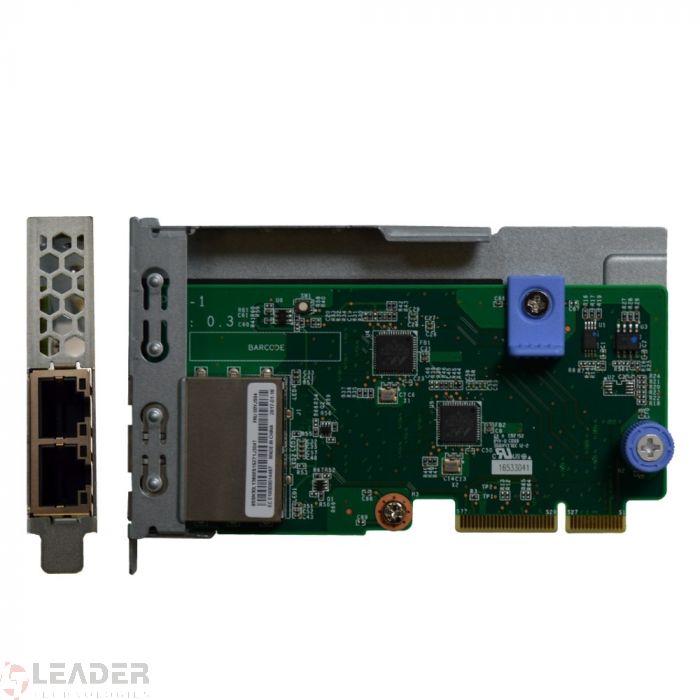

LENOVO ThinkSystem 1Gb 2-port RJ45 LOM

118,78 лв.

Преминете към края на галерията на изображенията

Преминете към началото на галерия със снимки

Добави към Списък с желани продукти

Marketing Description
The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.
Product Features
Low latency Intel Ethernet Flow Director delivers hardware-based application steering and Intel Data Direct I/O makes the processor cache the primary destination and source of I/O data rather than main memory. Virtualization performance With Intel Virtualization Technology (VT), the controller delivers outstanding I/O performance in virtualized server environments. The controller reduces I/O bottlenecks by providing intelligent offloads for networking traffic per virtual machine (VM), which enables near-line rate speeds for small packets and supports almost an unlimited amount of isolated traffic flows so that you can scale your cloud environment. Next-generation VMDq The controller support up to 128 VMDq VMs and offer enhanced Quality of Service (QoS) feature by providing weighted round-robin servicing for the Tx data. The controller offloads the data-sorting functionality from the hypervisor to the network silicon, which improves data throughput and CPU usage. VM load balancing Provides traffic load balancing (Tx and Rx) across VMs that are bound to the team interface. It also provides fault tolerance if a switch, port, or cable.
General
Device Type	Network adapter
Form Factor	Plug-in card
Interface (Bus) Type	LAN-on-motherboard (LOM)
Networking
Ports	Gigabit Ethernet x 2
Connectivity Technology	Wired
Data Link Protocol	Gigabit Ethernet
Data Transfer Rate	1 Gbps
Capacity	Virtual functions: 128
Remote Management Protocol	RMON
Features	Flow control, VLAN support, wake on LAN (WOL), IPv6 support, Quality of Service (QoS), RDMA support, Virtual Machine Device Queues (VMDq), PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), UEFI support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), tagged VLAN, Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, UDP/IP checksum offload, Virtual Ethernet Port Aggregator (VEPA), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Virtual Ethernet Bridge (VEB), TLP Processing Hint (TPH), Advanced Packet Filtering, Intel Virtual Technology (VT), Jumbo Frames support (up to 9728 bytes)
Compliant Standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg
Processor / Memory
Processor	2 x Marvell 88E1514
Expansion / Connectivity
Interfaces	2 x Ethernet 1000 - RJ-45
Miscellaneous
Compliant Standards	ICES-003 Class A, RoHS, UL 60950-1 Second Edition, FCC Part 15 A, KCC Class A, VCCI Class A, RCM, RRA Class A
Software / System Requirements
Software Included	Intel PROSet
OS Required	Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, VMware ESXi 6.5, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, SuSE Linux Enterprise Server 12 SP2, VMware ESXi 6.0 update 3
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Compatibility Information
Designed For	Lenovo ThinkAgile VX 1U Certified Node 7Y93 Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12 Lenovo ThinkAgile VX7820 Appliance 7Z13 Lenovo ThinkSystem SR530 Lenovo ThinkSystem SR550 Lenovo ThinkSystem SR570 Lenovo ThinkSystem SR590 Lenovo ThinkSystem SR630 Lenovo ThinkSystem SR650 Lenovo ThinkSystem SR850 Lenovo ThinkSystem SR860 Lenovo ThinkSystem SR950

Повече информация
Гаранционен срок	12 месеца
Наличност	Наични за поръчка
Вид	Аксесоар за сърър
Производител	LENOVO
Предназначен за	SR530 7X07/7X08, SR550 7X03/7X04, SR570 7Y02/7Y03, SR590 7X98/7X99, SR630 7X01/7X02, SR650 7X05/7X06, SR850 7X18/7X19, SR860 7X69/7X70, SR950 7X11/12/13
