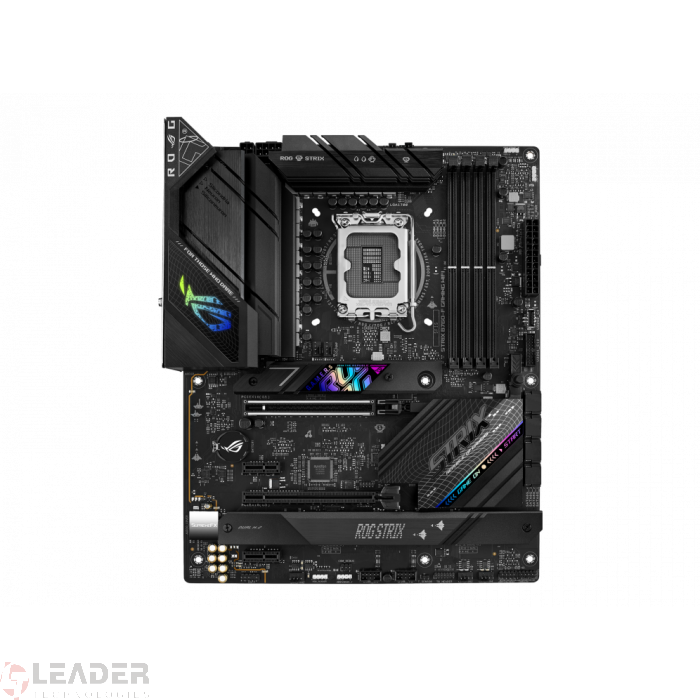

Дънна платка ASUS ROG STRIX B760-F GAM WIFI
Изчерпано количество
SKU
90MB1CT0-M1EAY0
КРАТКО ОПИСАНИЕ
ASUS B760 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 2xPCIEx16 1xPCIEx1 WiFi
552,90 €
| Description 90MB1CT0-M1EAY0 | |
|---|---|
| Memory type | 4 x DIMM, Max. 192GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II |
| Cpu's supported | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Intel® B760 Chipset |
| Graphics | 1 x DisplayPort**; 1 x HDMI® port*** |
| Expansion slots | Intel® 13th & 12th Gen Processors*; 1 x PCIe 5.0x16 slot (supports x16 mode)**; Intel® B760 Chipset**; 1 x PCIe 3.0 x16 slot (supports x4 mode)***; 2 x PCIe 3.0 x1 slots |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset** ; M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 ); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 ); 4 x SATA 6Gb/s ports |
| I/o | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 1 x USB 3.2 Gen 2 port (1 x Type-A); 6 x USB 3.2 Gen 1 ports (6 x Type-A); 1 x DisplayPort; 1 x HDMI® port; 1 x Wi-Fi Module; 1 x Intel® 2.5Gb Ethernet port; 5 x Audio jacks *; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack™ button ; 1 x Clear CMOS button |
| Connectors | 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 3 x M.2 slots (Key M) ; 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) ; 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thermal Sensor header; 1 xThunderbolt™ (USB4®) header |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback; Audio Features ; - SupremeFX Shielding Technology; - Savitech SV3H712 AMP ; - Rear optical S/PDIF out port ; - Premium audio capacitors; - Audio cover |
| Lan | 1 x Intel® 2.5Gb Ethernet; ASUS LANGuard |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | ATX Form Factor;12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Os | Windows® 11, Windows® 10 64-bit |
| Other | Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) ; Supports 2.4/5/6GHz frequency band*; Bluetooth® v5.3** |
| Warranty | 36 Months |
| Наличност | Налични за поръчка |
|---|---|
| Гаранционен срок | 36 |
| Производител | ASUS |
| Вид | Дънна платка |
| Чипсет на видео карта | 1 x DisplayPort**; 1 x HDMI® port*** |
