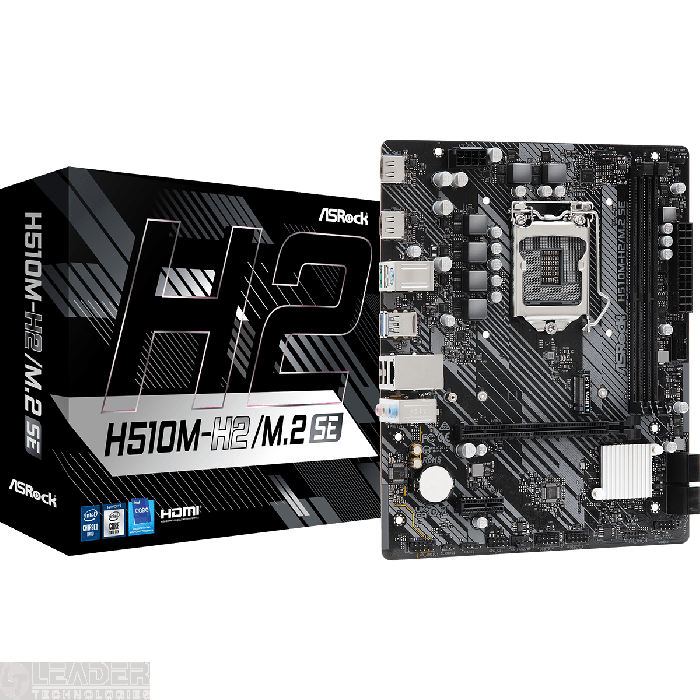

Дънна платка ASROCK H510M-H2/M.2 SE /1200
КРАТКО ОПИСАНИЕ
ASROCK H510 2xDDR4 4xSATA3 2xHDMI 1xM2 GLAN 1xPCIEx16 1xPCIEx1
119,90 лв.
| Description H510M-H2/M.2 SE | |
|---|---|
| Cpu's supported | - Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200); - Supports Intel® Turbo Boost Max 3.0 Technology |
| Memory type | - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB**; - Supports Intel® Extreme Memory Profile (XMP) 2.0; - 15μ Gold Contact in DIMM Slots |
| Chipset | - Intel® H470 |
| Graphics | - 2 x HDMI Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz; Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz |
| Expansion slots | Intel® 11th Gen & 10th Gen Processors: - 1 x PCIe 4.0 x16 Slot (PCIE1)*; Intel® H470 Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)** |
| Storage | Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*; - 4 x SATA3 6.0 Gb/s Connectors |
| I/o | - 1 x PS/2 Mouse/Keyboard Port; - 2 x HDMI Ports; - 2 x USB 2.0 Ports; - 4 x USB 3.2 Gen1 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Connectors | - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Lan | - Gigabit LAN 10/100/1000 Mb/s; - Realtek 8111H |
| Bios | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Form factor | - Micro ATX Form Factor: 9.1-in x 7.36-in, 23.1 cm x 18.7 cm |
| Os | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
| Наличност | Налични за поръчка |
|---|---|
| Гаранционен срок | 36 |
| Производител | ASROCK |
| Вид | Дънна платка |
| Чипсет на видео карта | - 2 x HDMI Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz; Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz |
Напишете вашето мнение
