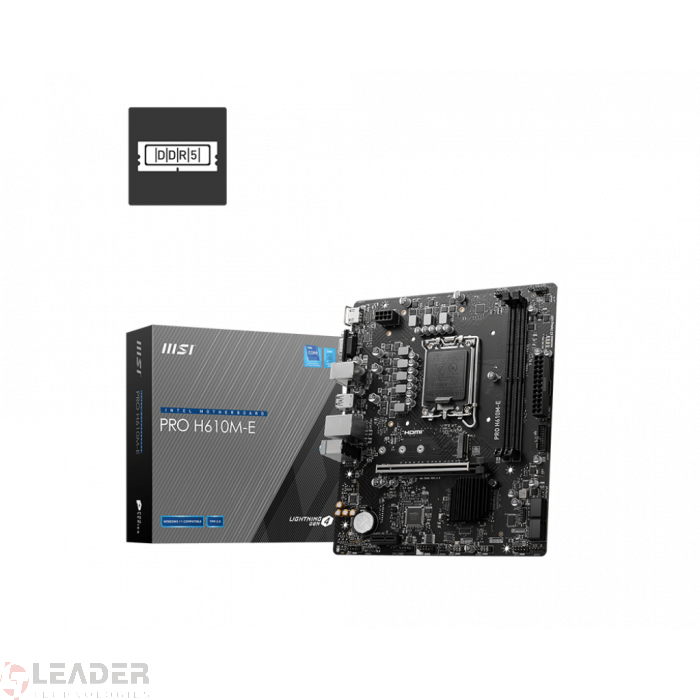

Дънна платка MSI PRO H610M-E DDR5 /LGA1700
| Description 911-7D48-019 | |
|---|---|
| Cpu's supported | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory type | 2x DDR5, Maximum Memory Capacity 96GB; Memory Support DDR5 5600 MHz (by JEDEC & POR); Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory |
| Chipset | INTEL H610 |
| Graphics | 1x HDMI™; Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Expansion slots | 1x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to (From CPU); PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Storage | 1x M.2; M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G |
| I/o | HDMI™; VGA; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps (Type-A); LAN port; Audio Connectors; USB 2.0; USB 2.0 |
| Connectors | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio |
| Lan | Realtek® RTL8111H Gigabit LAN |
| Form factor | mATX; 200mmx236.16mm |
| Os | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 36 Months |
| Наличност | Налични за поръчка |
|---|---|
| Гаранционен срок | 36 |
| Производител | MSI |
| Вид | Дънна платка |
| Чипсет на видео карта | 1x HDMI™; Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
