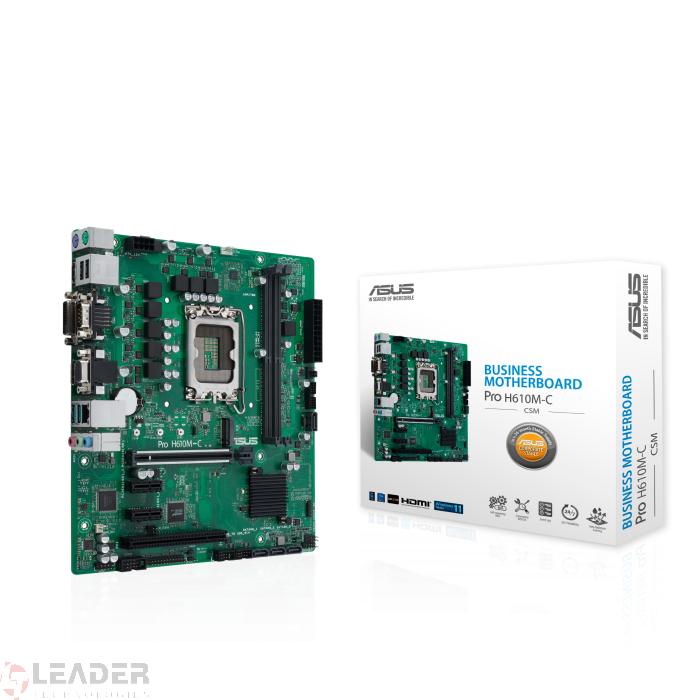

Дънна платка ASUS PRO H610M-C-CSM
Изчерпано количество
SKU
90MB1AT0-MOEAYC
КРАТКО ОПИСАНИЕ
None
273,90 лв.
| Description 90MB1AT0-MOEAYC | |
|---|---|
| Cpu's supported | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Memory type | 2 x DIMM, Max. 64GB, DDR5 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP) |
| Chipset | Intel® H610 Chipset |
| Graphics | 1 x DisplayPort**; 1 x D-Sub port; 1 x HDMI® port***; 1 x DVI-D port |
| Expansion slots | Intel® 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel® H610 Chipset; 2 x PCIe 3.0 x1 slots; 1 x PCI |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel® H610 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode); 4 x SATA 6Gb/s ports |
| I/o | 2 x USB 3.2 Gen 2 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI® port; 1 x D-Sub port; 1 x DVI-D port; 1 x Intel® 1Gb Ethernet; 3 x Audio jacks; 1 x PS/2 keyboard (purple) port; 1 x PS/2 mouse (green) port; 1 x COM port |
| Connectors | 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 1 x Clear CMOS header; 1 x Chassis Intrude header; 1 x COM Port headers; 1 x Front Panel Audio header (AAFP); 1 x COM debug header; 1 x LPT header; 1 x Mono-out header(with Amp IC); 1 x SMBUS header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback |
| Lan | 1 x Intel® 1Gb Ethernet;ASUS LANGuard |
| Bios | 128Mb Flash ROM |
| Form factor | mATX Form Factor;9.6 inch x 8.7 inch (24.4 cm x 22 cm) |
| Os | Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 36 Months |
| Наличност | Налични за поръчка |
|---|---|
| Гаранционен срок | 36 |
| Производител | ASUS |
| Вид | Дънна платка |
| Чипсет на видео карта | 1 x DisplayPort**; 1 x D-Sub port; 1 x HDMI® port***; 1 x DVI-D port |
